Location: 228th Ave SE, Sammamish, WA 98075
Call Date: July 22, 2026
First Visit: July 22, 2026
Work Start: July 22, 2026
Project Completion: July 22, 2026
Service Type: AC diagnostic and capacitor replacement
Lead Technician: Robert, 8 years of HVAC experience
System Before: Approximately 5-year-old AC system in great overall condition, with a failed capacitor
System After: Same AC system, failed capacitor replaced
Final Project Cost: $498.67
AC Capacitor Replacement in Sammamish, WA: Fixing the Failure and Looking at Why It Happened Early
Rajeev did not call because the house felt a little warmer than usual. His AC would try to start, the fan would come on, something would trip, and then the whole outdoor unit would shut back down. In July, that gets uncomfortable fast. He was a new Product Air customer, found us through our Issaquah Google Business Profile, and booked the diagnostic for July 22.
The House in Sammamish
Rajeev’s home is a 3,810-square-foot single-family house built in 2017. It has two stories and four bedrooms. The AC was about five years old at the time of the service call. That matters because this was not an old system where every major component was reaching the end of its expected life at the same time. Robert documented the equipment as being in great shape overall. So the diagnostic was about finding the part that was preventing a relatively young system from operating normally.
Why Would an AC Turn On and Then Shut Off?
An AC that starts and then shuts back down is giving you a symptom. The problem can be somewhere in the electrical starting circuit, the controls, or the compressor side of the system, so replacing parts based on the shutdown alone is guessing. Robert tested Rajeev’s equipment and found the failed component was the capacitor, while the rest of the five-year-old system was documented in good condition.
The capacitor stores electrical energy and helps the outdoor-unit motors start and stay within their intended operating conditions. The compressor needs a strong electrical boost to get moving against refrigerant pressure, and the condenser fan motor also relies on the capacitor circuit on many residential AC systems. A weak or failed capacitor can leave a motor struggling to start, drawing abnormal current, or dropping out before the system settles into normal operation. Rajeev did not need a compressor or a new AC because the diagnostic did not point there. He needed the failed capacitor replaced, which is exactly where the repair stayed.

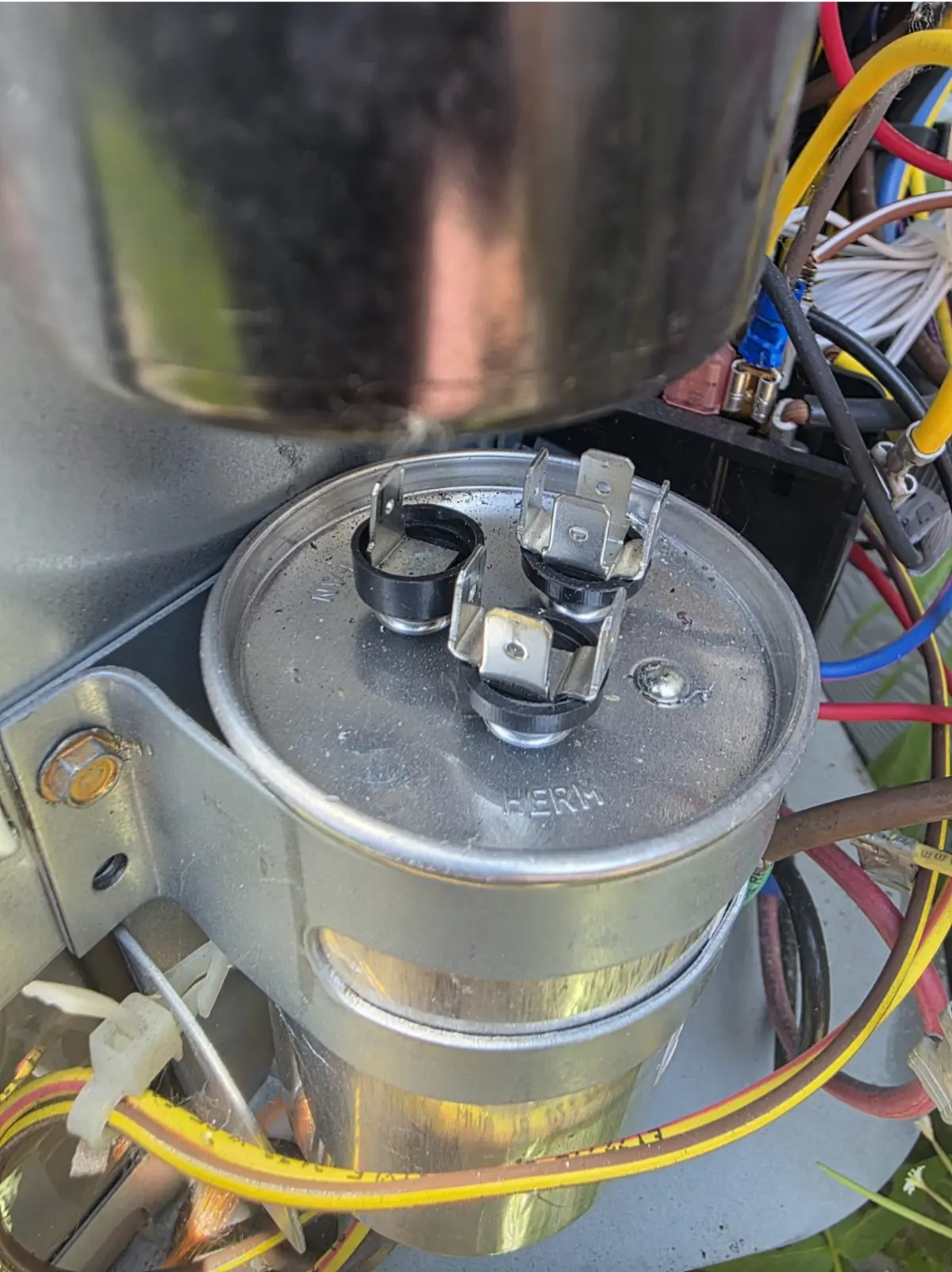

What Robert Found: A Failed Capacitor on a 5-Year-Old AC
Robert confirmed the immediate failure was the capacitor, but a five-year-old AC made him look beyond the bad part itself. Capacitors wear out over time because the dielectric material inside them degrades with heat and electrical stress, and higher operating temperatures can shorten that life. Rajeev’s system was otherwise documented in good condition, so Robert also looked at the conditions the outdoor unit had been operating in rather than treating an early capacitor failure as random.
Robert noted that the system appeared somewhat undersized for the load it was serving. An undersized AC can spend longer periods running during hot weather because it has less capacity available to pull the house down to setpoint. More runtime does not automatically kill a capacitor, but it does mean the compressor and condenser fan spend more hours operating under load.
The outdoor unit also did not have the manufacturer-recommended clearance around it. A condenser needs enough open space to pull outdoor air across the coil and discharge the heat the refrigerant picked up inside the house. Restricted airflow around the cabinet can make heat rejection harder and raise operating temperatures around the outdoor equipment. Heat is especially relevant to capacitors because it is one of the conditions that accelerates their aging.
Why Outdoor Unit Clearance Matters
An outdoor AC unit needs space around it. The condenser moves outdoor air across its coil so the system can reject the heat it removed from the house. That is why manufacturers publish clearance requirements around the equipment. That did not stop Robert from replacing the failed capacitor and getting the AC running again. It gave Rajeev another decision to make: repair the immediate failure only, or also correct a clearance issue Robert had documented around the condenser.
What Product Air Did
Robert handled the diagnosis and repair in the same visit, which took about an hour from start to finish. He confirmed the failed capacitor, checked the rest of the five-year-old AC, and found the equipment otherwise in good condition. Before replacing anything, he also walked Rajeev through the two conditions he did not want to ignore: the system appeared somewhat undersized for the home, and the outdoor unit did not have the manufacturer-recommended clearance needed for proper condenser airflow.
Robert did not tell Rajeev he had to relocate the outdoor unit before we would repair the AC. He gave him two options.
| Option | Price | What It Addressed |
| Replace the failed capacitor | $498.67 | Restore operation without relocating the existing outdoor unit |
| Replace the capacitor and relocate the outdoor unit | $2,199 | Repair the immediate failure and address the documented clearance concern |
The two prices were for two different scopes of work. One fixed the failed capacitor and restored cooling. The other included that same repair plus relocation of the outdoor unit to address the documented clearance concern.
We explained that the $498.67 option fixed the failed capacitor but left the clearance concern unchanged. The $2,199 option addressed both. Rajeev understood the difference and chose the capacitor-only repair. That is exactly the kind of decision I want the homeowner making, with a clear picture of what each option solves and what it leaves alone.

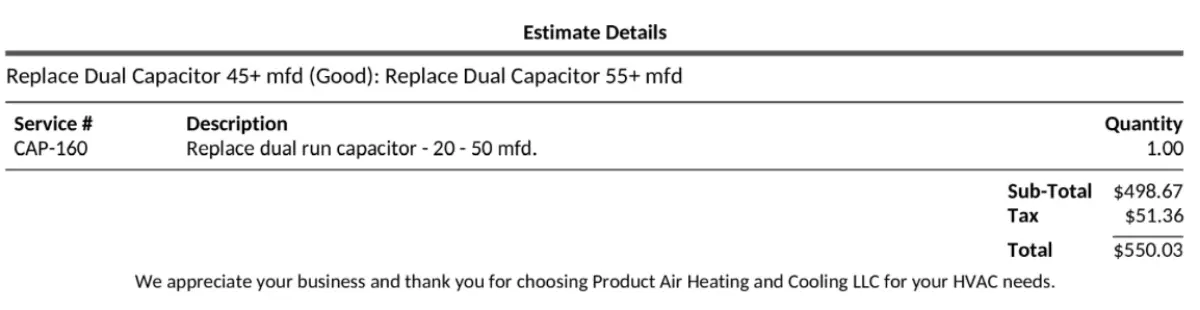

How Much Did the AC Capacitor Repair Cost?
Rajeev paid $498.67 for the capacitor replacement.
Why We Did Not Push the $2,199 Option
Rajeev had a five-year-old AC that was still in great overall condition. The failed capacitor did not justify turning the visit into a replacement conversation, but the clearance and sizing concerns were still worth explaining. So we showed him both scopes. One restored cooling. The other also addressed the condenser location. Rajeev chose the first one because that was the work he wanted done that day.
What Rajeev Got From the Repair
Rajeev called Product Air on July 22 because his AC was shutting down and the house was warm. Robert came out that same day, found the failed capacitor, and completed the repair in about an hour. The system itself was still in great overall condition.
Rajeev also left the appointment knowing that Robert had concerns about the outdoor-unit clearance and system sizing, and that he had another option if he wanted to address the condenser location later. Most importantly for that day, his AC was working again. Rajeev told us he appreciated having his air conditioning back up and running.
Tech Brother Rule: Fix Today’s Problem First
A technician can find more than one thing worth fixing, but you do not have to do it all today. I’d get the AC working, understand what can wait, and make the next decision without pressure.
Frequently Asked Questions: AC Capacitor Repair in Sammamish, WA
Can a failed capacitor cause an AC to stop working?
Yes. A capacitor helps electrical motors in the outdoor AC equipment start and operate. If it fails, the system may have trouble starting or may stop operating correctly. In Rajeev’s case, Robert diagnosed a failed capacitor as the immediate cause of the no-AC complaint.
Why did Rajeev’s capacitor fail after only about five years?
The case notes do not establish one single proven cause. Robert identified two conditions that may have contributed: the system was a little undersized, and the outdoor-unit clearance did not meet manufacturer specifications. That is different from saying either one definitely caused the failure.
Can poor clearance around an outdoor AC unit cause problems?
Yes, insufficient clearance can interfere with the operating conditions the manufacturer designed the condenser around. Manufacturers publish clearance requirements so the outdoor unit has the space it needs around it. Robert documented that Rajeev’s unit did not meet the manufacturer’s clearance specification.
Does an undersized AC automatically damage the capacitor?
No. An undersized system may run longer to meet the home’s cooling load, but that does not prove it caused a specific capacitor failure. In Rajeev’s case, Robert considered the sizing concern alongside the inadequate condenser clearance when explaining why the capacitor may have failed early.
Why was relocating the outdoor unit more expensive?
The $2,199 option included both replacing the failed capacitor and relocating the outdoor unit. The $498.67 option replaced only the capacitor. That is why the two estimates were not simply two different prices for the same repair.
Did Rajeev have to relocate the AC unit?
No. Robert explained the concern and provided the relocation option, but Rajeev chose the capacitor-only repair.
How long did the repair take?
Robert completed the diagnostic and capacitor repair during the same visit in about one hour.
How much did Rajeev pay?
Rajeev paid $498.67 by Visa card for the capacitor replacement.
Key Takeaways
- An AC that starts and then shuts down needs a proper diagnostic because the symptom alone does not identify the failed component
- A failed capacitor can stop an otherwise healthy air conditioner from starting or running normally
- Capacitors can fail earlier when operating conditions expose them to excessive heat or electrical stress
- An undersized AC may run for longer periods during hot weather, which increases operating hours on the compressor and outdoor fan
- Proper condenser clearance matters because the outdoor coil needs enough airflow to reject heat efficiently
- Replacing a failed capacitor fixes the immediate electrical problem but does not correct separate installation concerns around the outdoor unit
